High Voltage DC Power Supply 페이지

High Voltage DC Power Supply

High Voltage Electrotechnix

Major Developed Products

Total 5건 1 페이지

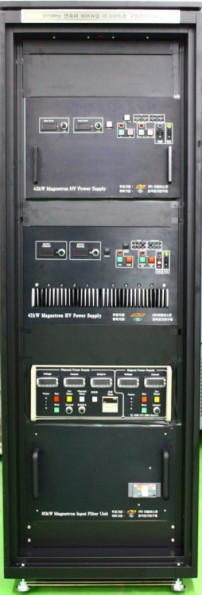

HV-1442
- High voltage DC power supply for 30kW high Power Magnetron
- Output: DC 14kV/3A, 42kW
- Input: 3*380Vac
- Filament, Magnet Power included

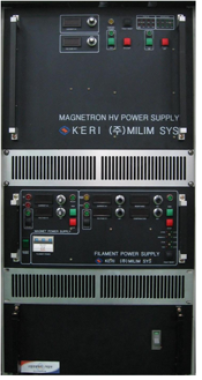

HV-1785
- High voltage DC power supply for 60kW high Power Magnetron
- Output: DC 17kV/5A, 85kW
- Input: 3*380Vac
- Filament, Magnet Power included

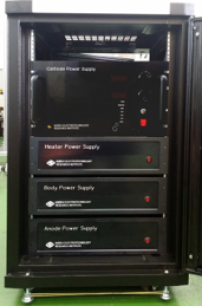

HV-50100
- High voltage DC power supply for Gyrotron
- Output: DC 50kV/2A, 100kW
- Input: 3*380Vac
- 25kV,20kV Aux Power included
HV-5050
- High voltage high precision DC power supply for Radar
- Output: DC 50kV/2A, 0.1% voltage regulation, 100kW
- Input: 3*380Vac
- 25kV,20kV Aux Power included
HV-160 (under developing)
- High voltage power supply for X-ray
- Output: DC 160kV/6mA(pulse), 2mA(continuous)
- Input: 220Vac or DC380V
